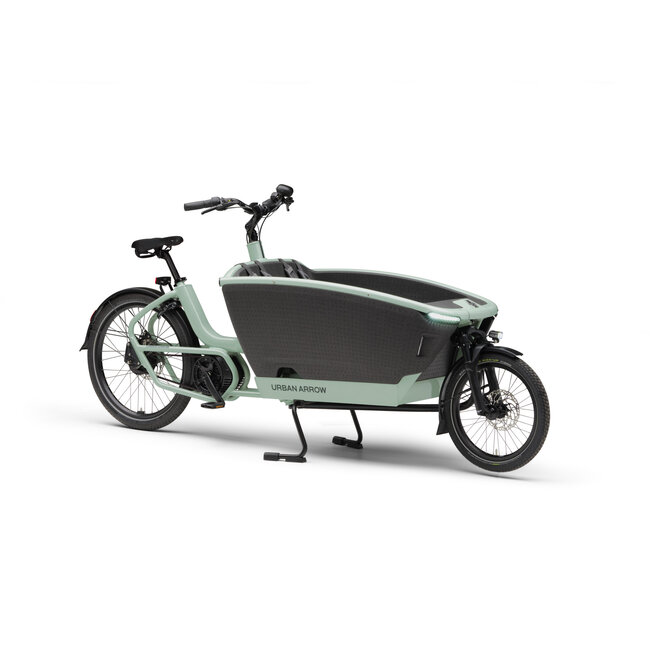

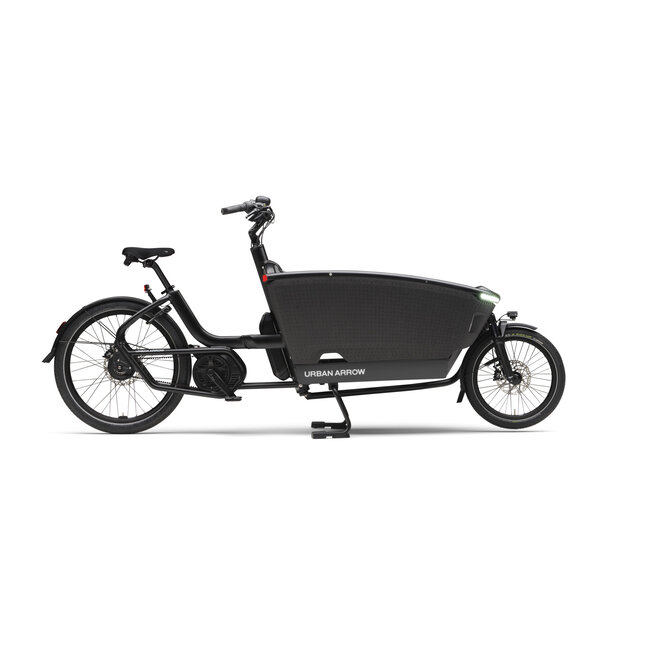

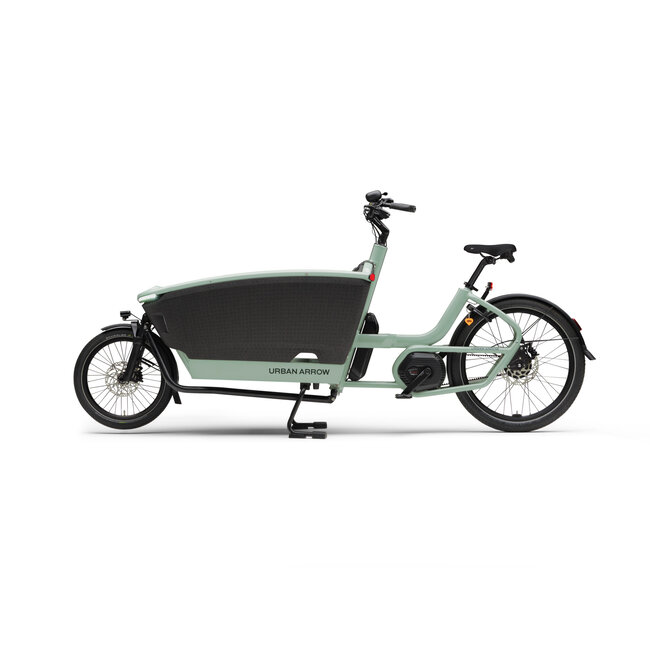

Urban Arrow FamilyNext Pro
The New Standard for Family Cargo Bikes
The Urban Arrow FamilyNext Pro is the latest evolution of the cargo bike that changed everything. With a fresh design, integrated suspension, and refined comfort and safety features, the FamilyNext Pro is built for modern families who want a smarter, smoother way to move through city life.
Urban Arrow has reimagined their iconic front-loader for even greater comfort, style, and versatility. It's still the bike that replaces your car—but now it rides better than ever.
What's New

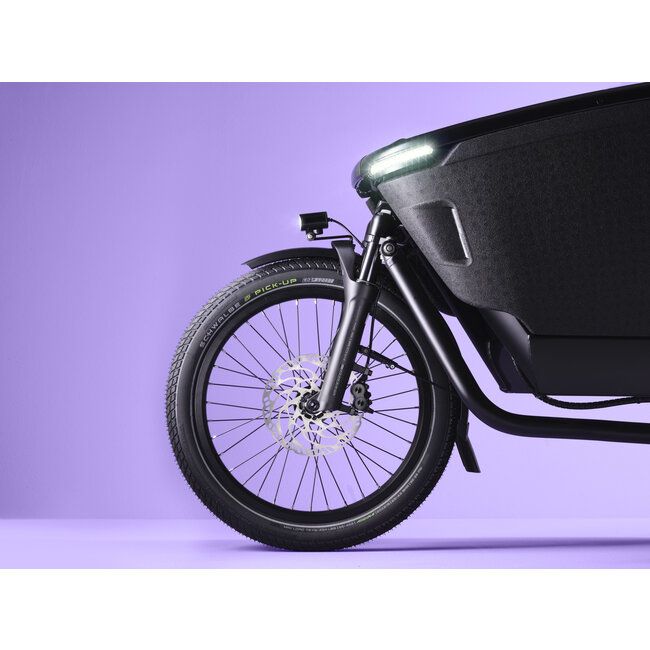

- New Suspension Fork: A plush front suspension absorbs bumps, potholes, and kid complaints.
- Updated Box Design: Easier to step in and out, with improved safety features and built-in reflectors for visibility.
- Comfort Meets Control: Relaxed saddle, upright geometry, ergonomic grips, and intuitive steering for confident riding.
- Bosch Cargo Line Motor (85Nm): Haul up to 550 lbs with smooth, powerful assist—even on hills or into the wind.
- Future-Ready: Optional GPS module, LED lighting system, and full Bosch Smart System with Kiox 300 display.
Key Features & Specs
- Motor: Bosch Cargo Line Gen 4 (Smart System), 250W, 85Nm

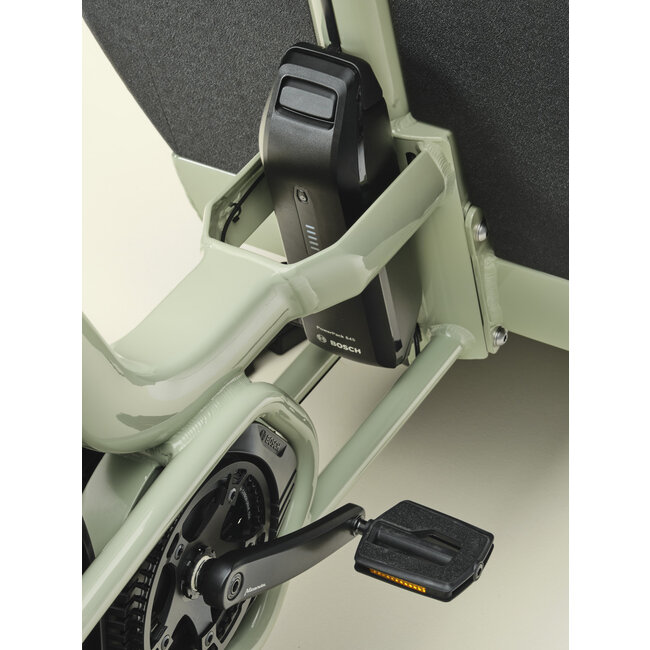

- Battery: Bosch PowerPack 545Wh

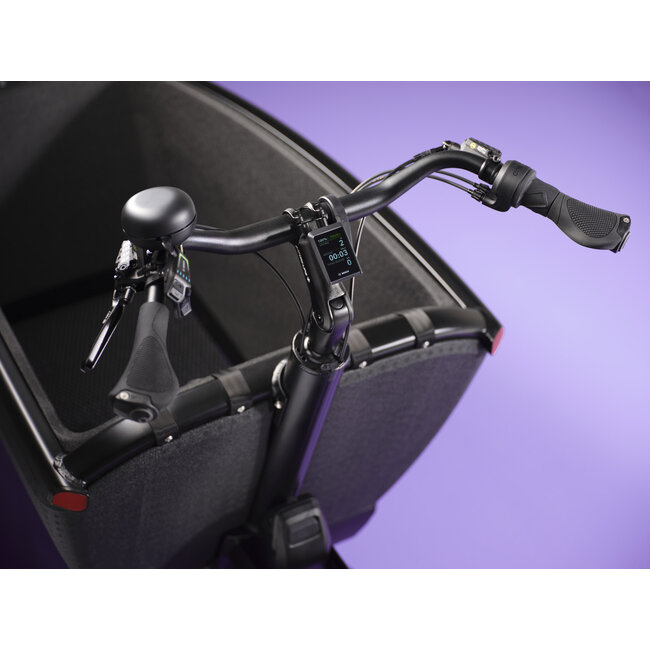

- Display: Bosch Kiox 300 + LED remote
- Drivetrain: Gates Carbon Belt Drive + Enviolo Heavy Duty CVT hub
- Brakes: Magura hydraulic disc brakes, 203mm rear / 180mm front
- Lights: Lezyne Power E115 + integrated LED accent lighting
- Tires: Schwalbe Super Moto X (rear) / Schwalbe Pick-Up (front)
- Saddle: Selle Royal Relaxed Gel Saddle
- Suspension: Suntour Mobie34 CGO Boost, 60mm travel
- Max Load: 550 lbs total | 275 lbs front box
- Weight: 112 lbs (bike only)
- Dimensions: 102" L x 27.5" W x 43" H
- Colors: Matte Black or Green
- Optional Add-ons: GPS module, Rain Cover Plus, extra bench, baby seat adapter, box cover
Comfort. Safety. Confidence.

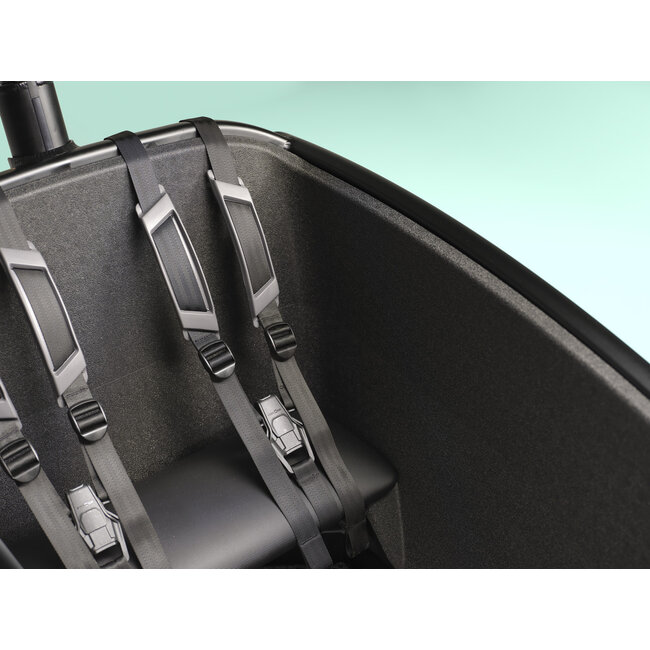

With improved harness systems, a higher backrest, and integrated lighting and reflectors, the FamilyNext Pro offers serious peace of mind. The redesigned box and protection tube enhance safety and durability, while the EPP foam construction acts like an upside-down helmet for your most precious cargo.
Ready to Roll?
Test ride the FamilyNext Pro at Clever Cycles and discover why this is the most advanced Urban Arrow yet. From school runs to grocery missions and beyond, this bike is built to keep up with real family life—quietly, smoothly, and with zero emissions.
